Service
Every process, under one roof.
Cutting, punching, bending, welding, finishing and assembly run as one line inside our Peenya facility — here is the process, the machines that run it, and the machining capabilities behind them.
Our Process
From flat sheet to finished assembly.
Our process includes CNC punching, CNC laser cutting, CNC bending, MIG and TIG welding, finishing and powder coating, and final assembly.
Disciplined, well defined floor layouts ensure high levels of efficiency, quality and defects-free output. Special focus is given to housekeeping all through the process line; quality and aesthetics is a core value.
Step 01
CNC Laser Cutting
Blanks are profiled on a Bystronic 3 kilowatt laser, cutting up to 20mm thick sheet.
Step 02
CNC Punching
Muratec Motorum turret punch presses of 20 and 25 tons, each with 44 tool stations.
Step 03
CNC Bending
Amada NC and CNC press brakes from 25 to 80 tons, forming panels up to 2500mm.
Step 04
MIG & TIG Welding
ABB IRB1410 robot welding alongside Esab MIG and TIG stations for structural and precision joins.
Step 05
Finishing & Powder Coating
Time Saver deburring across 600mm width leaves parts clean and paint-ready for powder coating.

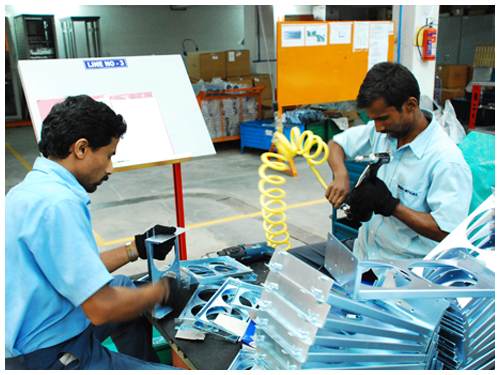

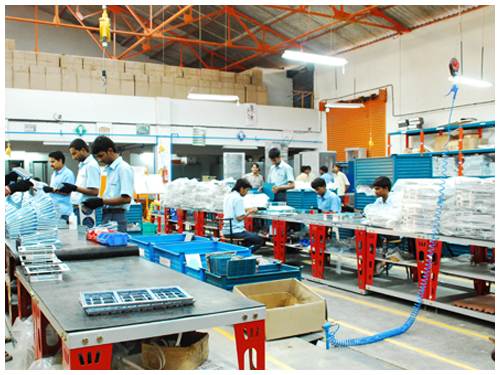

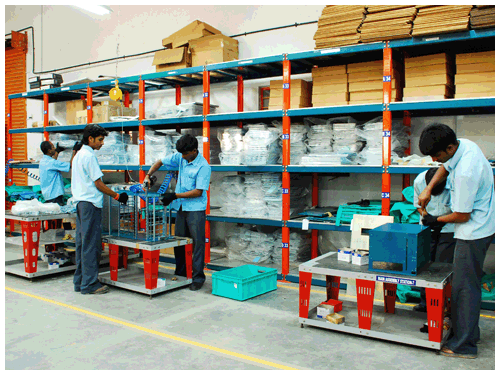

Step 06
Final Assembly
LCM clinching and riveting, fitment and build-up of the complete unit before dispatch.
Our Machines
CNC machines from across the globe.
Our machines include CNC punching, CNC laser cutting, CNC bending, MIG and TIG welding, and finishing — supplied by Bystronic, Muratec, Amada, Toyokoki, ABB and Esab.
Machining Capabilities
The equipment on our floor.
Machine, model, specification and quantity for every process we run in house.
| # | Description | Machinery | Model | Specification | Qty |
|---|---|---|---|---|---|
| 1 | CNC Laser cutting | Bystronic (Switzerland) | 3015, 3 Kilowatts | 3000 x 15mm; 20mm thick sheet; 10mm thick sheet | — |
| 2 | CNC Turret Punch Press | Muratec | Motorum 2548 LT | Punching 25 tons capacity, max punching thickness 6.35mm, No. of Stations 44, Max dia of punch 80mm on 3.0mm thickness sheet | — |
| 3 | CNC Turret Punch Press | Muratec | Motorum 2048 LT | Punching 20 tons capacity, max punching thickness 6.35mm, No. of Stations 44, Max dia of punch 79mm on 1.5mm thickness sheet | — |
| 4 | Toyokoki | Japan | APB 286 | 600mm and 30 tons capacity | 2 Nos |
| 5 | NC Press Brake | Amada | RG-25 I | 25 tons X 1250mm | 2 Nos |
| 6 | NC Press Brake | Amada | RG-35 | 35 tons X 1250mm | 2 Nos |
| 7 | CNC Press Brake | Amada | RG-80 | 80 tons X 2500mm | 2 Nos |
| 8 | Deburring m/c | Time Saver (Holland) | — | 600mm width | — |
| 9 | Clinching (Riveting) m/c | LCM (Italy) | — | 6 Ton Capacity | 3 Nos |
| 10 | Robot Welding | ABB (Sweden) | IRB1410 | 50kg | — |
| 11 | Tig Welding M/C | Esab | Heliarc 250 AC DC | — | — |
| 12 | Mig Welding Machine | Esab | Auto K400 / K250 | 1.2 dia wire | 6 Nos |
Scroll horizontally to see full specifications.
Tell us what you need made.
Send your drawing and material specification, and we’ll come back with lead time and pricing.
